Hood Covers Kitchen
Details
Hood covers kitchen HA9088
90cm Side Suction hood covers kitchen
Slide Sensor Touch Control
Black Coated SPCC Hood Body and Stainless Steel Chimneys
Category
Wall Mounted Range Hood
Share to
Description

Product Description



Hood covers kitchen feature a side suction European design with a width of 90cm. The hood body is made from SPCC material and finished in black. Its appearance is sleek and elegant. The standard filter is made of aluminum, with the option to upgrade to baffle filter or other types based on customer preferences.



  • Ultra-Silence:

The model has really low noise to only 53dB and you may enjoy your private kitchen time when cooking.



Ultra-Silent Cooking Hoods



  • Anti-oil Finished Fan Blade:

The fan blade features a Teflon finish that is resistant to oil, and with a motor speed of 600-1500r/min, it minimizes the need for frequent cleaning of the fan blade.

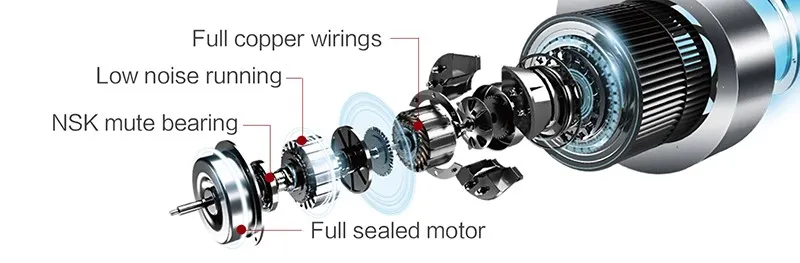

  • Full-Sealed Motor System:

According to our national approved lab, DE&E high quality full-sealed motors serve 30% longer compared with normal motors. The macromolecule insulating material for sealing also keeps the motor more sustainable and efficient.



Cooking Hoods Full-Sealed Motor System



  • Filter Options:

You can choose different types of filters according to your market's needs.

5-Layer Aluminum Filter for Cooking Hoods
Baffle Filter for Cooking Hoods
Aluminum+Stainless Steel Filter for Cooking Hoods



Specifications



Product Name

hood covers kitchen

Model No.

HA9088

Body Material

Coated SPCC + Tempered Glass

Levels of Speed

4 Speeds

Maximum Airflow

800m³/h

Motor Power

180W

Noise Level

53dB

Motor Type

Full-Sealed Metal AC Motor

Fan Type

Metal Fan with Teflon Finish

Control Type

Slide Sensor Touch Control

Filter

1Pc 5 Layers Aluminum Filter

Light Type

≤2*2W LED

Venting Size

150mm

Air Pressure

220Pa

Rated Voltage/Frequency

220-240V~,50/60Hz

Rated Input Power

184W

Product Size

895*415*820-1140(W*D*H)(mm)

Packing Size

960*475*659(W*D*H)(mm)

Loading Qty

(20GP/40GP/40HQ)=72/150/200

G.W/N.W

30kg/25kg

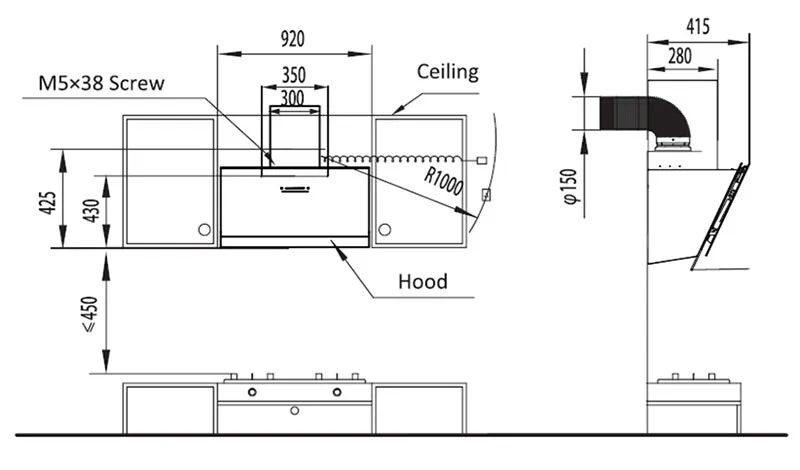

Installation View



Cooking Hoods Installation View



Certifications



product-29-34 Test Report 083-1840802-000



FAQ

Q: Can you use a 60cm rangehood with a 90cm cooktop?

A: While it's physically possible to use a rangehood of any size, it's highly recommended to match the width of the rangehood to that of the cooktop. Ideally, for a 90cm cooktop, a rangehood that is 90cm or wider is best. Using a 60cm rangehood over a 90cm cooktop can result in poor coverage for the outer burners, leading to inadequate smoke and grease extraction. This not only compromises the efficiency of your cooking space but also increases potential fire risks, especially with gas cooktops. For optimal performance and safety, choose a rangehood that fits your cooktop size.

Q: What is a wall-mounted hood?

A: A wall-mounted hood is a type of kitchen ventilation system that is installed directly on the wall above the cooking range or cooktop. It is designed to capture smoke, steam, grease, and odors generated during cooking and effectively vent them outside or filter them out of the kitchen.
Wall-mounted hoods come in various styles and designs, often serving as a focal point in the kitchen. They can be ducted to vent air outside the home or configured as ductless models that recirculate air through filters. The height and size of the hood should be matched to the cooking surface to ensure optimal performance and efficiency. These hoods not only improve air quality but also add an aesthetic element to the kitchen space.

Q: Can I use PVC pipe to vent a range hood?

A: No, it is not recommended to use PVC pipe to vent a range hood. PVC is not fire-resistant and does not have the necessary durability to handle the heat and potential grease buildup from the kitchen. Instead, it is advisable to use metal ducting, such as galvanized steel or aluminum, which is specifically designed for venting applications and provides better safety and performance. Always check local building codes and regulations for the appropriate materials to use for range hood ventilation.
