Wall Mounted Oven Hood

Send Inquiry
Wall Mounted Oven Hood
Details
Wall mounted oven hood HA9086
90cm Side Suction European Style wall mounted oven hood
Black Coated SPCC Hood Body and Stainless Steel Chimneys
Ultra-Silent
Category
Wall Mounted Range Hood
Share to
Description

Product Description



This wall mounted oven hood features a side suction European design with a width of 90cm. The hood body is made from SPCC material and finished in black. Its appearance is sleek and elegant. The standard filter is aluminum, but it can be upgraded to baffle filter or other types based on customer preferences.



  • Ultra-Silence:

The model operates at a remarkably low noise level of just 53dB, allowing you to fully enjoy your private kitchen time while cooking.



Ultra-Silent Kitchen Exhaust System1



  • Anti-oil Finished Fan Blade:

The fan blade features a Teflon finish that is resistant to oil, and with a motor speed of 600-1500r/min, it minimizes the need for frequent cleaning of the fan blade.

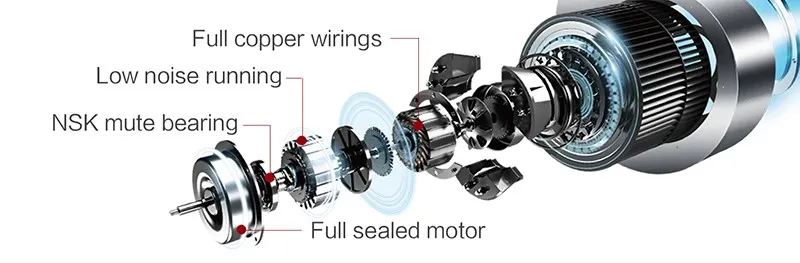

  • Full-Sealed Motor System:

According to our national approved lab, DE&E high quality full-sealed motors serve 30% longer compared with normal motors. The macromolecule insulating material for sealing also keeps the motor more sustainable and efficient.



Ultra-Silent Kitchen Exhaust System



  • Filter Options:

You can choose different types of filters according to your market's needs.

5-Layer Aluminum Filter for Kitchen Exhaust System
Baffle Filter for Kitchen Exhaust System
Aluminum+Stainless Steel Filter for Kitchen Exhaust System



Specifications



Product Name

wall mounted oven hood

Model No.

HA9086

Body Material

Coated SPCC + Tempered Glass

Levels of Speed

3 Speeds

Maximum Airflow

800m³/h

Motor Power

180W

Noise Level

53dB

Motor Type

Full-Sealed Metal AC Motor

Fan Type

Metal Fan with Teflon Finish

Control Type

Sensor Touch Control

Filter

1Pc 5 Layers Aluminum Filter

Light Type

≤2*2W LED

Venting Size

150mm

Air Pressure

220Pa

Rated Voltage/Frequency

220-240V~,50/60Hz

Rated Input Power

184W

Product Size

895*385*820-1140(W*D*H)(mm)

Packing Size

960*475*659(W*D*H)(mm)

Loading Qty

(20GP/40GP/40HQ)=72/150/200

G.W/N.W

30kg/25kg

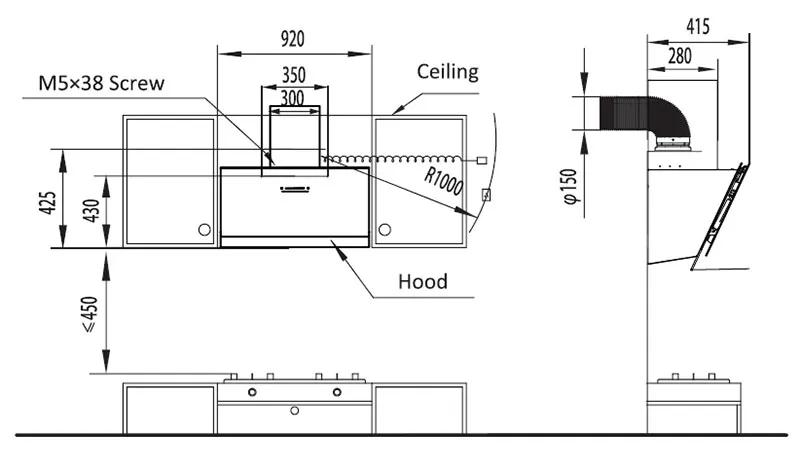

Installation View



Kitchen Exhaust System Installation View



Certifications



product-29-34 Test Report 083-1840802-000



FAQ

Q: Does a range hood duct need to be cleaned?

A: Yes, a range hood duct should be cleaned regularly. Over time, grease, dust, and other debris can accumulate in the ductwork, which can reduce its efficiency and pose a fire hazard. Cleaning the duct helps ensure that the range hood operates effectively, improves air quality in your kitchen, and minimizes the risk of fire. It's recommended to schedule professional cleaning at least once a year, or more frequently if you cook often or use high-fat foods. Additionally, regularly checking and cleaning the filters of the range hood can also help maintain its performance.

Q: What's your advantage over peer factories?

A: The company is one of the most competitive enterprises in the high-end kitchen appliances industry in China. It has established a national-level postdoctoral research station and a provincial-level enterprise technology center, and it is recognized as a national high-tech enterprise. Additionally, the company is a benchmark demonstration enterprise for cloud adoption at the provincial level in Zhejiang and a demonstration enterprise for service-oriented manufacturing in Zhejiang.
Its factory is constructed based on Industry 4.0 and adopts advanced technologies to achieve quality management traceability which involves real-time monitoring and feedback throughout the production process, providing full traceability of product quality and achieving lean production management.
By leveraging technologies such as RFID, PDA, sensors, and wireless network communication, we enable connectivity among equipment, materials, and personnel. Through data exchange, communication, and automatic uploads, we achieve intelligent identification, positioning, tracking, and monitoring of all elements involved in production management.

Q: What's your MOQ?

A: Our MOQ for each model is 100pcs. But we will offer a less MOQ=50pcs for new client if it can accept neutral package.



Hot Tags: wall mounted oven hood, China wall mounted oven hood manufacturers, suppliers, factory, 24 inch non vented range hood, 900mm stainless steel range hood, Euro Kitchen Range Hood, integrated cooker hood 90cm, integrated rangehood 90cm, ventless range hood wall mount
