Small Kitchen Vent Hood

Send Inquiry
Small Kitchen Vent Hood
Details
Small Kitchen Vent Hood HT53A
90cm T-shape Chinese Style Kitchen Vent Hood
Deep V-Shape Smoke Collection Cavity
1800m³/h Big Suction Power+500Pa Super Air Pressure
Silver Coated SPCC Hood Body and Stainless Steel Chimneys
Category
Wall Mounted Range Hood
Share to
Description

Product Description



The Small Kitchen Vent Hood features a T-shape Chinese style design with a width of 90cm. The hood body is made from SPCC material and finished in silver, while the chimneys are made of stainless steel. Its smoke collection cavity is traditional deep V-shape which can collect smoke thoroughly.



  • 500Pa Super Air Pressure for Effective Smoke Exhaust:

The DE&E's super air pressure range hood features a dedicated intelligent strong exhaust system, which includes a wide-frequency adaptive motor, biomimetic dual-wing impeller, and an integrated pressurization duct system that work together to achieve a maximum air pressure of over 500Pa, effortlessly eliminating cooking fumes and preventing duct congestion and backflow of oil fumes.



Super Air Pressure Small Kitchen Vent Hood



  • 1800m³/h Big Suction Power for Instant Smoke Removal:

With a super-large air intake area combined with the powerful drive provided by the high-speed motor, it creates an outstanding suction power of 1800m³/h, instantly drawing away smoke from high-temperature cooking.



Big Suction Power Small Kitchen Vent Hood



  • Four-Sided Deep Chamber to Lock in Oil Smoke:

The deep V-shaped smoke collection chamber, formed in one piece, features four sides for rapid smoke intake, effectively locking in rising oil smoke with 360° three-dimensional smoke collection, allowing for smoother oil smoke diversion.



  • Ultra-Narrow Chimney, Seamless Replacement:

With a chimney width of 380mm and a 450mm optimal depth, it fits both old and new cabinet sizes seamlessly, naturally integrating into kitchen spaces while providing a broader cooking view. (Body width with feet is 460mm, excluding feet is 450mm)

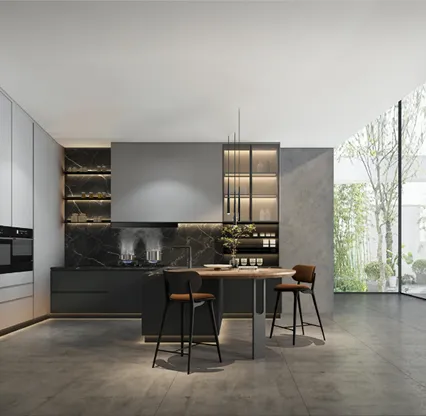

Ultra-Narrow Chimney Small Kitchen Vent Hood



  • Thoughtful Details for Peace of Mind and Convenience:
  1. Stainless steel chimney for a minimalist and elegant look.
  2. Gradient LED lights provide uniform and soft illumination.
  3. Super-smooth oil cup design for easier cleaning.
SS Chimney of Small Kitchen Vent Hood
Easy-to-Clean Glass Control Panel of Small Kitchen Vent Hood

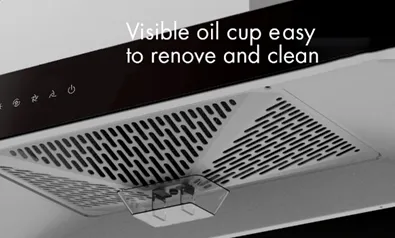

Smooth Oil Cup of Small Kitchen Vent Hood



Specifications



Product Name

Small Kitchen Vent Hood

Model No.

HT53A

Body Material

Silver Coated SPCC + Tempered Glass

Levels of Speed

3 Speeds

Maximum Airflow

1800m³/h

Motor Power

268W

Noise Level

66dB

Motor Type

Full-Sealed Metal AC Motor

Fan Type

Metal Fan with Teflon Finish

Control Type

Sensor Touch Control

Filter

Silver Coated SPCC Mesh Filter

Light Type

≤1*2W LED

Venting Size

185mm

Air Pressure

500Pa

Rated Voltage/Frequency

220V~,50Hz

Rated Input Power

270W

Product Size

895*460*580(W*D*H)(mm)

Packing Size

955*637*523(W*D*H)(mm)

Loading Qty

(20GP/40GP/40HQ)=84/168/210

G.W/N.W

24.4kg/20kg



Product Dimension Drawing



Product Drawing of Small Kitchen Vent Hood 1

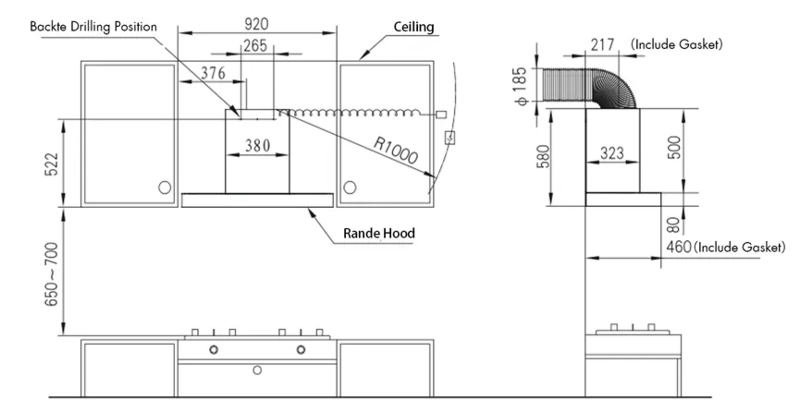

Installation View



Installation View of Small Kitchen Vent Hood



FAQ

Q: What should I look for when buying a rangehood?

A: When selecting a rangehood, several key features should be taken into consideration.
First, evaluate the suction power, which is a measure of the hood's strength, typically expressed in cubic meters per hour. If you engage in heavy cooking, it's advisable to choose a rangehood with high suction power. However, for lighter cooking methods such as steaming, simmering, or boiling, a model with moderate suction power may be sufficient and more economical.
Next, consider the noise level. A quieter rangehood allows for a more enjoyable cooking experience and family interaction in the kitchen. Generally, higher suction power can lead to increased noise levels, but advancements in technology now exist that effectively balance suction strength with reduced noise, providing a comfortable cooking environment.
By prioritizing these features, you can select a rangehood that best meets your cooking needs and enhances your kitchen experience.

Q: Does a range hood duct need to be cleaned?

A:  Over time, grease and residue can accumulate inside the ductwork, leading to blockages and reduced airflow. To ensure proper ventilation and optimal performance, it is essential to inspect the duct annually. We recommend having a professional conduct a thorough inspection and cleaning of the ductwork at least once a year. This proactive maintenance helps prevent the buildup of debris, ensuring your range hood operates efficiently and effectively.

Q: Are ducted range hoods better?

A:  Ducted range hoods are generally more effective than ductless models, as they efficiently eliminate smoke, moisture, heat, and odors by venting them outside. Their superior performance makes them ideal for heavy cooking, offering enhanced efficiency and quieter operation. While installation may be more costly due to the need for exterior wall access, the benefits they provide in maintaining a clean and comfortable kitchen environment make them a worthy investment.
