Product Description
This ductless hood is a European style of 90cm width. The hood body material is stainless steel and it is equipped with inner and outer chimneys. The top cover of the hood body is a black tempered glass which distinguishes this model from conventional T-shape range hoods. The standard filters are aluminum ones, but they can also be changed to baffle filters or other types according to customer's requirement.
- Ultra-Silence：
The model has really low noise to only 53dB and you may enjoy your private kitchen time when cooking.
- Anti-oil Finished Fan Blade：
Teflon finished fan blade is anti-oil by the motor turning speed of 600-1500r/min, therefore there is no need to wash the fan blade very often.

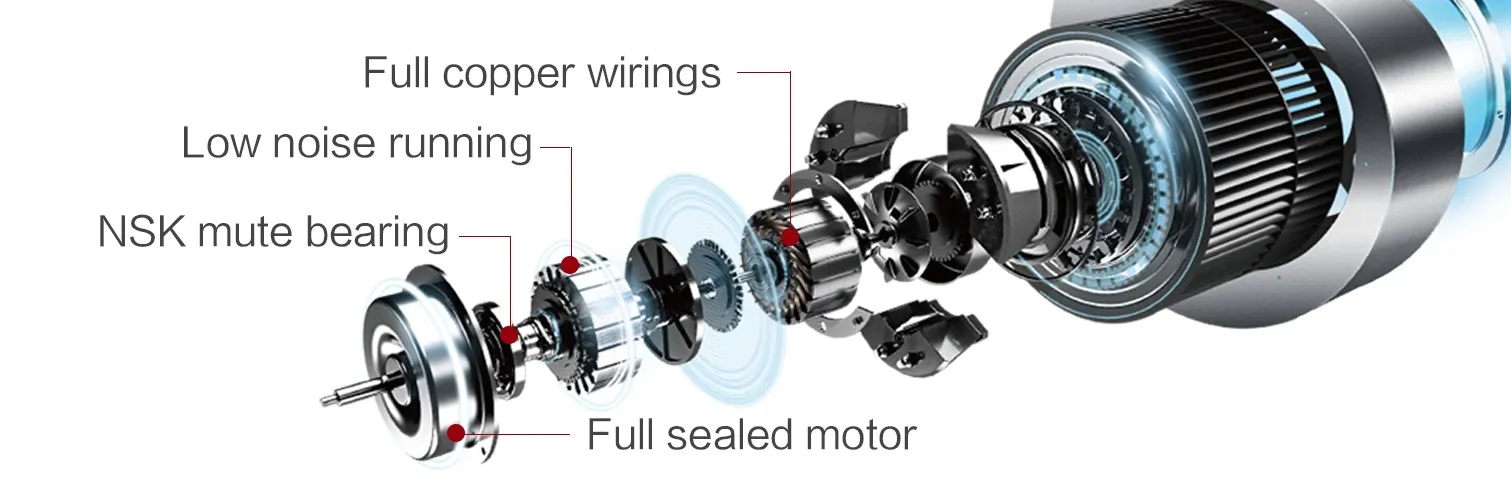

- Full-Sealed Motor System:
According to our national approved lab, DE&E high quality full-sealed motors serve 30% longer compared with normal motors. The macromolecule insulating material for sealing also keeps the motor more sustainable and efficient.

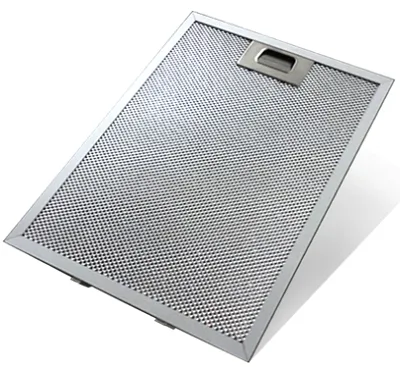

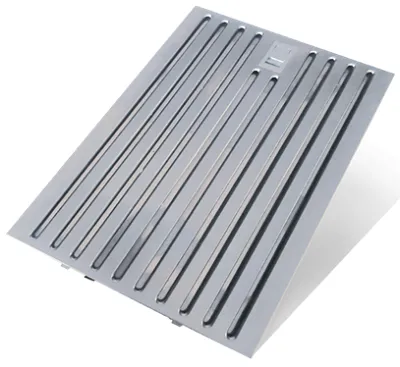

- Filter Options：
You can choose different types of filters according to your market's needs.
Specifications
|
Product Name |
ductless hood |
Model No. |
H308T9 |
|
Body Material |
Stainless Steel + Tempered Glass |
Levels of Speed |
4 Speeds |
|
Maximum Airflow |
1000m³/h |
Motor Power |
180W |
|
Noise Level |
53dB |
Motor Type |
Full-Sealed Metal AC Motor |
|
Fan Type |
Metal Fan with Teflon Finish |
Control Type |
Sensor Touch Control |
|
Filter |
3Pcs 5 Layers Aluminum Filters |
Light Type |
≤2*2W LED |
|
Venting Size |
150mm |
Air Pressure |
220Pa |
|
Rated Voltage/Frequency |
220-240V~,50/60Hz |
Rated Input Power |
184W |
|
Product Size |
895*480*800(W*D*H)(mm) |
Packing Size |
950*465*520(W*D*H)(mm) |
|
Loading Qty |
(20GP/40GP/40HQ)=124/265/320 |
G.W/N.W |
24.6kg/18.7kg |

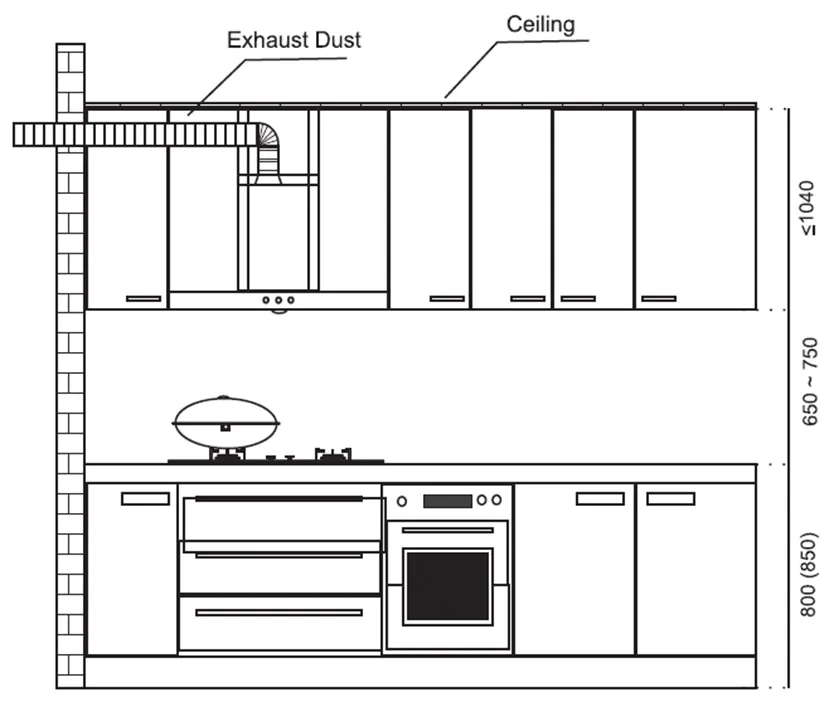

Installation View
Certifications
 |
DSS_BE-40179_M1 |
 |
DSS_SHES210701485002-M1 |
FAQ
