Wall Range Hood HT53B
90cm T-shape Chinese Style Kitchen Vent Hood
Deep A-Shape Smoke Collection Cavity
1800m³/h Big Suction Power+500Pa Super Air Pressure
Gray Coated SPCC Hood Body and Chimney
Category
Wall Mounted Range Hood
Share to
Description

Product Description



The Wall Range Hood features a T-shape Chinese style design with a width of 90cm. The hood body is made from SPCC material and coated in gray. Its smoke collection cavity is an innovative deep A-shape which can collect smoke thoroughly.



  • 500Pa Super Air Pressure for Effective Smoke Exhaust

The DE&E's super air pressure range hood features a dedicated intelligent strong exhaust system, which includes a wide-frequency adaptive motor, biomimetic dual-wing impeller, and an integrated pressurization duct system that work together to achieve a maximum air pressure of over 500Pa, effortlessly eliminating cooking fumes and preventing duct congestion and backflow of oil fumes.



  • 1800m³/h Big Suction Power for Instant Smoke Removal

With a super-large air intake area combined with the powerful drive provided by the high-speed motor, it creates an outstanding suction power of 1800m³/h, instantly drawing away smoke from high-temperature cooking.

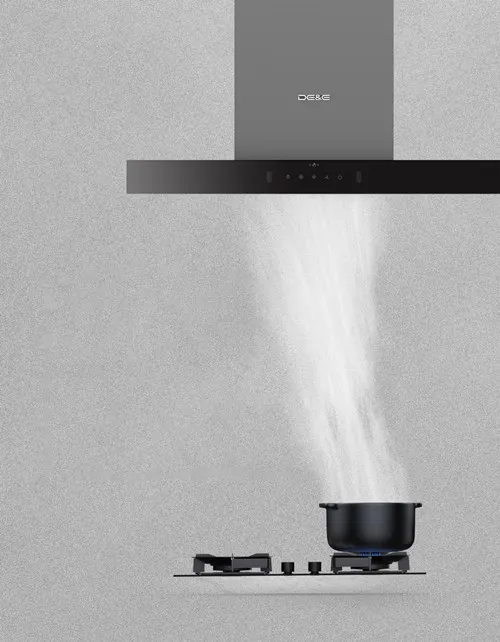

Big Suction Power of Wall Range Hood



  • Four-Sided Deep Chamber to Lock in Oil Smoke

The deep A-shaped smoke collection chamber, with a height of over 96mm on all four sides, significantly exceeds that of ordinary European-style range hoods, effectively increasing the smoke collection area and preventing oil smoke from escaping.



  • Ultra-Narrow Chimney, Seamless Replacement

With a chimney width of 380mm and a 450mm optimal depth, it fits both old and new cabinet sizes seamlessly, naturally integrating into kitchen spaces while providing a broader cooking view. (Body width with feet is 460mm, excluding feet is 450mm)

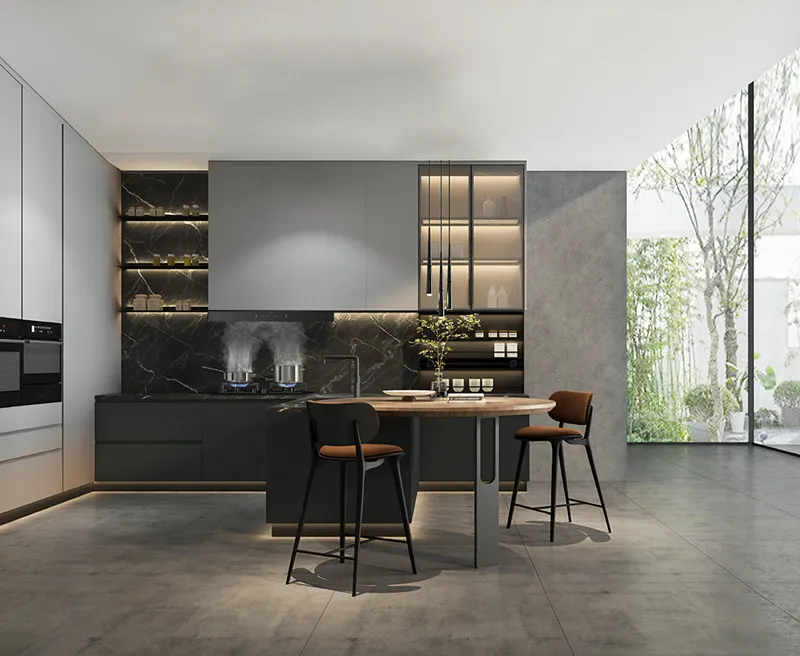

Ultra-Narrow Chimney of Wall Range Hood



  • Thoughtful Details for Peace of Mind and Convenience

Hands-Free Intelligent Control: Activate automatically with a simple hand wave for easy operation.

Gradient LED Lights: Provide uniform and soft illumination.

Super-Smooth Oil Cup Design: Makes cleaning more convenient.

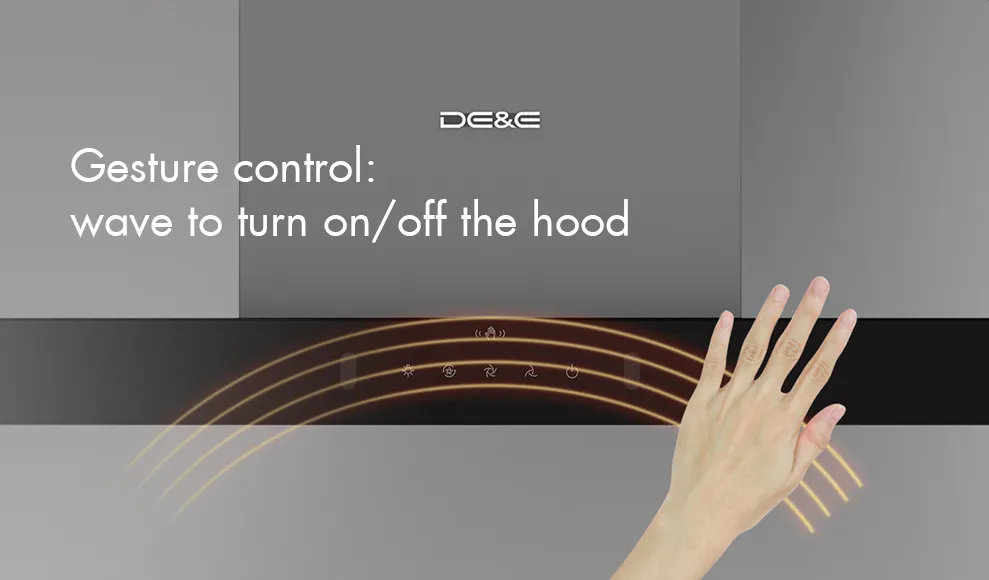

Gesture Control of Wall Range Hood

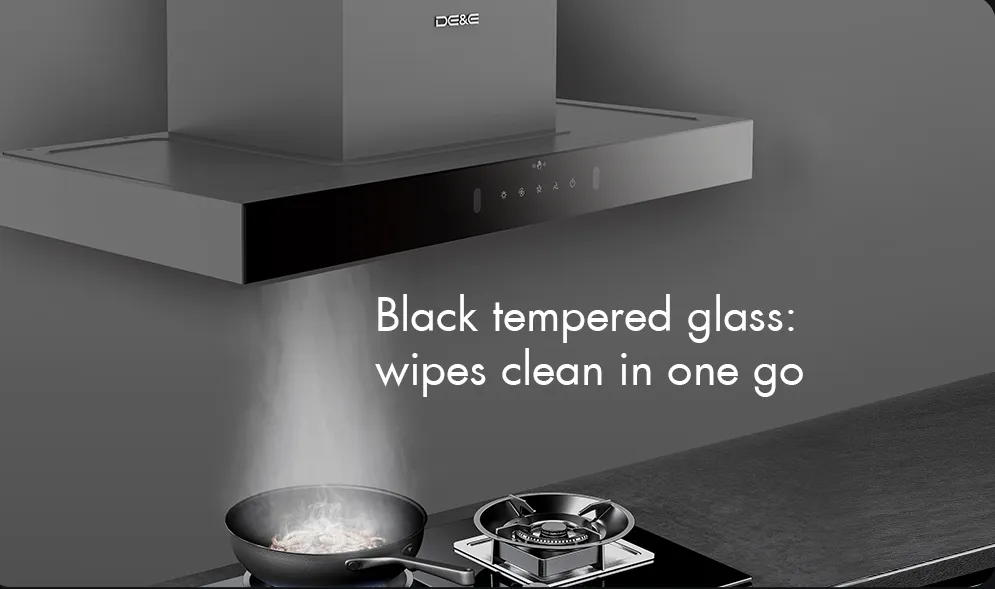

Easy-to-Clean Glass Panel of Wall Range Hood

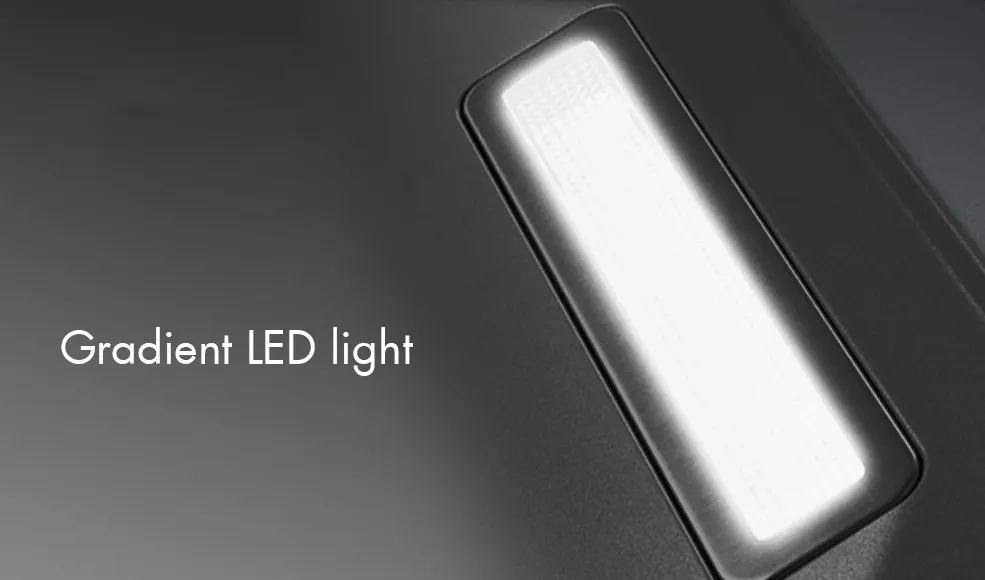

Gradient LED light of Wall Range Hood

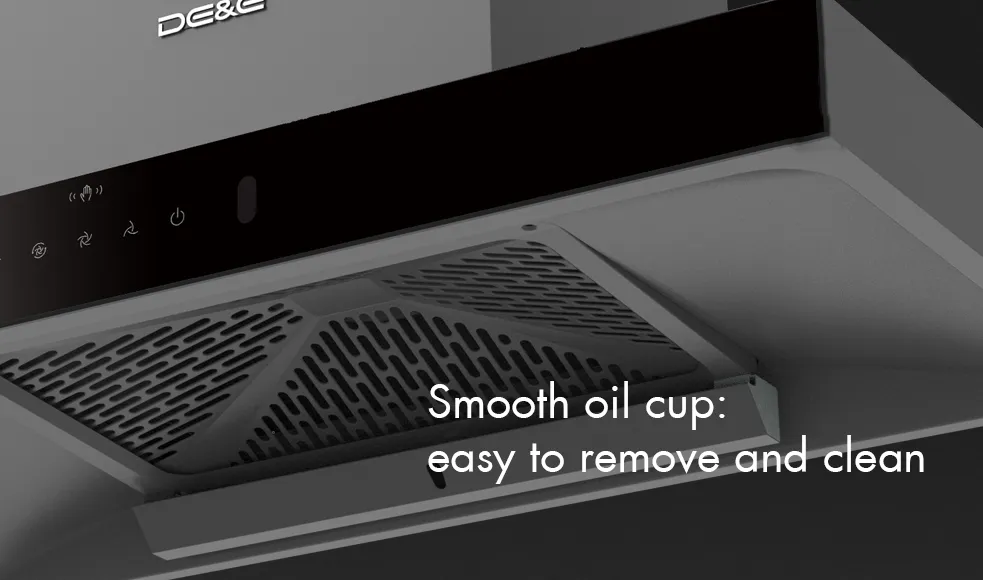

Smooth Oil Cup of Wall Range Hood



Specifications



Product Name

Wall Range Hood

Model No.

HT53B

Body Material

Gray Coated SPCC + Tempered Glass

Levels of Speed

3 Speeds

Maximum Airflow

1800m³/h

Motor Power

268W

Noise Level

66dB

Motor Type

Full-Sealed Metal AC Motor

Fan Type

Metal Fan with Teflon Finish

Control Type

Sensor Touch with Gesture Control

Filter

Gray Coated SPCC Mesh Filter

Light Type

≤1*2W LED

Venting Size

150mm

Air Pressure

220Pa

Rated Voltage/Frequency

220V~,50Hz

Rated Input Power

270W

Product Size

895*460*580(W*D*H)(mm)

Packing Size

955*637*523(W*D*H)(mm)

Loading Qty

(20GP/40GP/40HQ)=84/168/210

G.W/N.W

24.4kg/20kg



Product Dimension Drawing



Product Diagram of Wall Range Hood 1

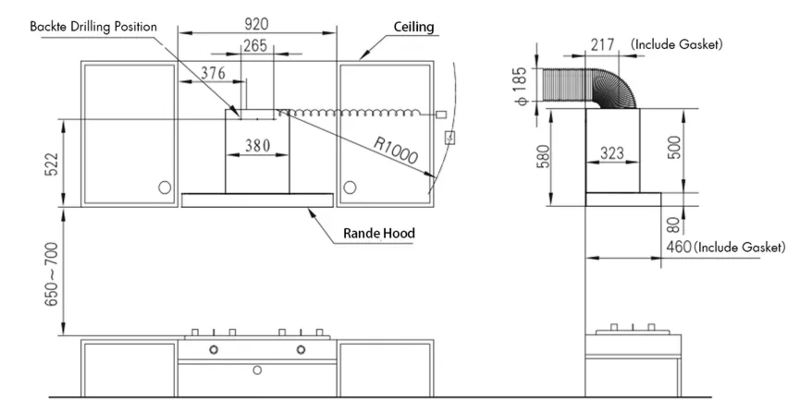

Installation View



Installation View of Wall Range Hood



FAQ

Q: Does a range hood duct need to be cleaned?

A: Over time, grease and residue can accumulate inside the ductwork, leading to blockages and reduced airflow. To ensure proper ventilation and optimal performance, it is essential to inspect the duct annually. We recommend having a professional conduct a thorough inspection and cleaning of the ductwork at least once a year. This proactive maintenance helps prevent the buildup of debris, ensuring your range hood operates efficiently and effectively.

Q: Can you use a 60cm rangehood with a 90cm cooktop?

A:  While it's physically possible to use a rangehood of any size, it's highly recommended to match the width of the rangehood to that of the cooktop. Ideally, for a 90cm cooktop, a rangehood that is 90cm or wider is best. Using a 60cm rangehood over a 90cm cooktop can result in poor coverage for the outer burners, leading to inadequate smoke and grease extraction. This not only compromises the efficiency of your cooking space but also increases potential fire risks, especially with gas cooktops. For optimal performance and safety, choose a rangehood that fits your cooktop size.

Q: What is a wall-mounted hood?

A:  Wall-mounted hoods come in various styles and designs, often serving as a focal point in the kitchen. They can be ducted to vent air outside the home or configured as ductless models that recirculate air through filters. The height and size of the hood should be matched to the cooking surface to ensure optimal performance and efficiency. These hoods not only improve air quality but also add an aesthetic element to the kitchen space.
