900mm Canopy Rangehood
Details
900mm Canopy Rangehood HT636(TI)
90cm T-shape Chinese Style Canopy Rangehood
Titanium Plated Stainless Steel Body
2800m³/h Big Suction Power
1800Pa Super Air Pressure
High-Temp. Auto-Clean Function
Category
Wall Mounted Range Hood
Share to
Description

Product Description



The 900mm Canopy Rangehood is almighty in smoke collection, suction and exhausting, adopting strong smoke exhausting technology, making kitchen a place free from oil fume.



  • Almighty in smoke collection, suction and exhausting, eliminating oil fumes

DE&E's brand-new Vertu III Series products are leading the industry in terms of smoke collection volume, big suction power and super air pressure. This series products are premium ones which can instantly capture, fully suck and fluently exhaust the smoke, thoroughly solving the problem of smoke backflow and bringing you a fresh and perfect kitchen!

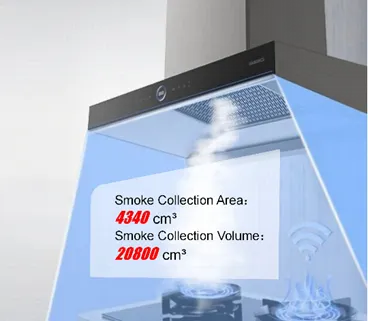

It has dual-structure and dual smoke collection areas with collection area as big as 4340cm² and collection volume as large as 20800cm³. Cooperated with "Bernoulli Effect", it can achieve optimal aerodynamic layout, thus locks in the oil fumes firmly at the moment when they suddenly rise.



Big Collection Cavity 900mm Canopy Rangehood



  • 1800Pa super air pressure facilitates intelligent and rapid exhausting

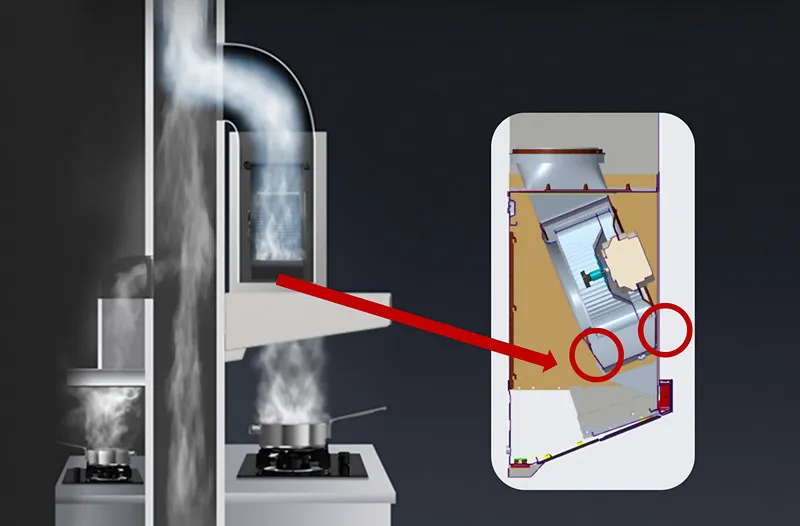

DE&E's innovative air duct system achieves 1800Pa super air pressure due to the following reasons: 1) Scientific 22° downtilt angle design of fan system: perfect tilt angle effectively increases the air inlet and outlet areas, and oil fumes can directly be sucked and exhausted and at the same time a delta noise-reduction dual-area is formed;



900mm Canopy Rangehood Scientific Angle

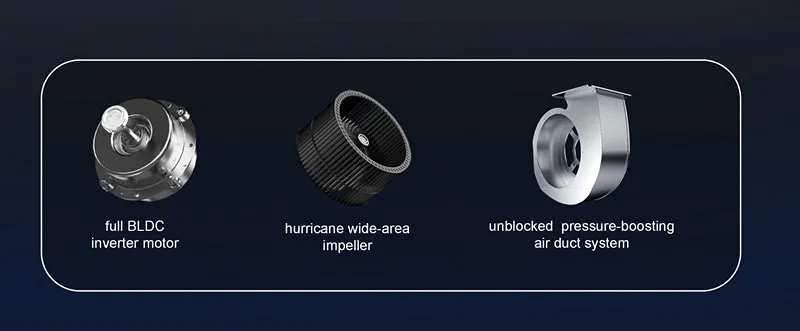

2) With the MAX18 super air pressure core technology, full DC inverter motor, hurricane wide-area impeller, and unblocked pressure-boosting air duct system working in synergy, it thoroughly solves the problems of flue congestion and smoke backflow.



900mm Canopy Rangehood Air Duct System



  • 2800m³/h big suction power, instantly suck all the oil fumes

Hurricane wide-area impeller, equipped with driving force provided by high-speed rotation motor, achieving 2800m³/h big suction power and instantly sucking stir-frying smoke.



  • Original Titanium Nano Technology: Outstanding Performance with "Five Resistances"

Breaking with tradition, DE&E is the first to use aerospace-grade titanium materials in the HT636(TI). The innovative "titanium nano" technology applies cutting-edge aerospace PVD technology to uniformly adhere "high-density titanium crystal particles" to the surface, forming a high-hardness titanium film that imparts a rich texture to the titanium panel. Additionally, a "nano-scale polymer" creates a secondary protective film at 200℃, enhancing surface stability and endowing the HT636(TI) with outstanding performance characterized by "Five Resistances": Oil Resistance, Fingerprint Resistance, Scratch Resistance, Corrosion Resistance and Rust Resistance

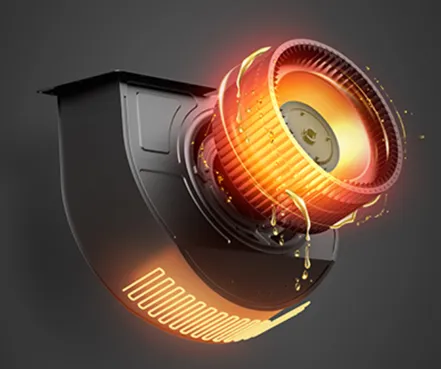

  • 75℃ high-temperature self-cleaning, automatically remove oil stain

After the range hood has been used for 60 hours and then shut off for 30 minutes, it automatically activates the self-cleaning program. At 75°C, it melts away internal grease while maintaining the cleanliness of the air duct system, ensuring lasting strong suction.



900mm Canopy Rangehood High-Temp Auto-Clean Feature



  • Intelligent upgrading and intelligent control

Gesture Control: Smart gesture sensing allows the range hood to turn on automatically with a wave of the hand, making operation easier without touching it.

Color Film Screen Control: Visible UI design with sensitive control; and interactive photosensitive lines are full of technological sense.

Hood & Hob Linkage: When the hob is turned on, the range hood starts immediately. After the hob is turned off, the hood runs for three minutes to eliminate residual smoke before automatically shutting down, making cooking easier and convenient.



900mm Canopy Rangehood HoodHob Linkage Feature



  • Careful attention to details and thoughtful care

Geometric aesthetics design: 45° bevel with break angle design; exquisite and sharp lines add visual appeal to the kitchen.

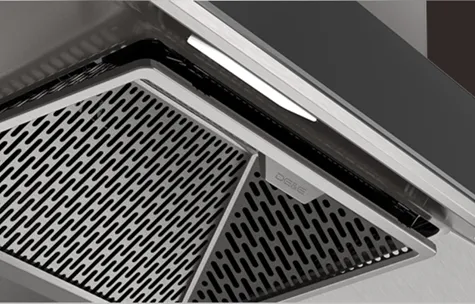

Removable Grease Filter: Press-type grease filter can be easily detached by only pressing for simple cleaning and long-lasting cleanliness.



900mm Canopy Rangehood Removable Grease Filter



Large Capacity Oil Cup: The large-capacity oil cup can guarantee no need to dump oil frequently.

Left and Right Soft Illumination: Two side LED ambient lights illuminate the natural color of the ingredients.



Specifications



Product Name

900mm Canopy Rangehood

Model No.

HT636(TI)

Body Material

Titanium Plated Stainless Steel + Tempered Glass

Levels of Speed

3 Speeds

Maximum Airflow

2800m³/h

Motor Power

268W

Noise Level

62dB

Motor Type

Full-Sealed Metal BLDC Motor

Fan Type

Metal Fan with Teflon Finish

Control Type

Sensor Touch with Gesture Control and Color Film Screen

Filter

Titanium Plated Stainless Steel Mesh Filter

Light Type

≤2*1.5W LED

Venting Size

180mm

Air Pressure

1800Pa

Rated Voltage/Frequency

220-240V~,50/60Hz

Rated Input Power

271W

Product Size

895*465*717(W*D*H)(mm)

Packing Size

957*760*582(W*D*H)(mm)

Loading Qty

(20GP/40GP/40HQ)=72/144/144

G.W/N.W

30.8kg/25.1kg

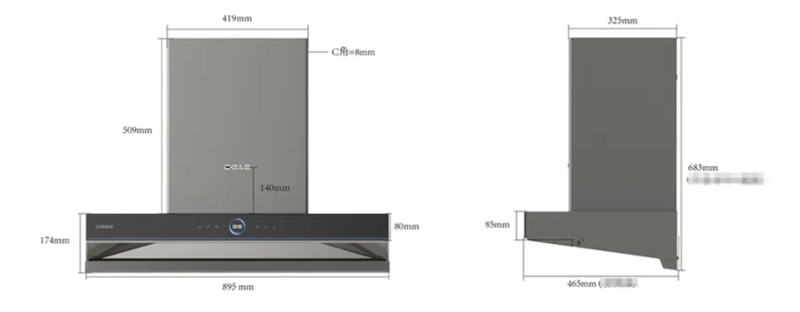

Product Dimension Drawing



Product Diagram of 900mm Canopy Rangehood

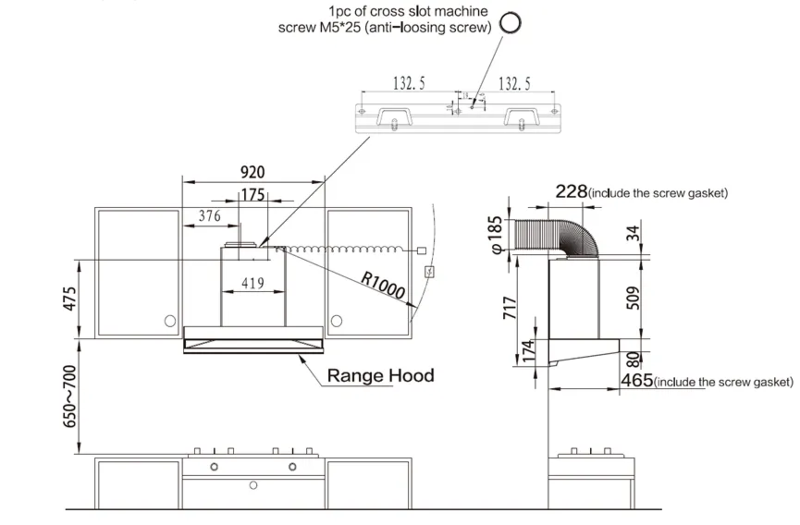

Installation View



843a3bb5-d26c-4c89-abcc-06df57acf648



Certifications



product-29-34 CB2025CQC-125120



FAQ

Q: What should I look for when buying a rangehood?

A: When selecting a rangehood, several key features should be taken into consideration.
First, evaluate the suction power, which is a measure of the hood's strength, typically expressed in cubic meters per hour. If you engage in heavy cooking, it's advisable to choose a rangehood with high suction power. However, for lighter cooking methods such as steaming, simmering, or boiling, a model with moderate suction power may be sufficient and more economical.
Next, consider the noise level. A quieter rangehood allows for a more enjoyable cooking experience and family interaction in the kitchen. Generally, higher suction power can lead to increased noise levels, but advancements in technology now exist that effectively balance suction strength with reduced noise, providing a comfortable cooking environment.
By prioritizing these features, you can select a rangehood that best meets your cooking needs and enhances your kitchen experience.

Q: Does a range hood duct need to be cleaned?

A:  Over time, grease and residue can accumulate inside the ductwork, leading to blockages and reduced airflow. To ensure proper ventilation and optimal performance, it is essential to inspect the duct annually. We recommend having a professional conduct a thorough inspection and cleaning of the ductwork at least once a year. This proactive maintenance helps prevent the buildup of debris, ensuring your range hood operates efficiently and effectively.

Q: What is your product range?

A:  DE&E's advantageous products are range hoods and gas hobs. But we also have categories such as electric oven, combi oven, disinfection cabinet and etc.
