Product Description

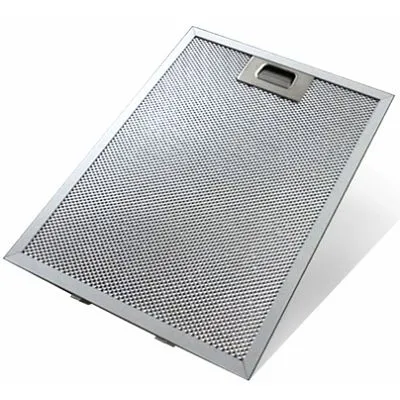

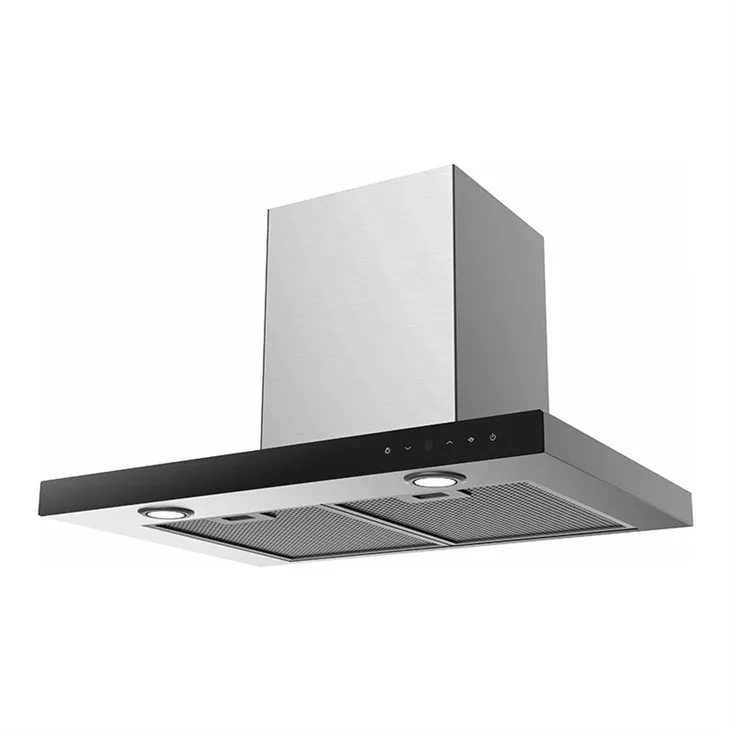

This kitchen range hood non vented is a European style of 70cm width. The hood body material is stainless steel and it is equipped with inner and outer chimneys. Definitely, the body and chimney materials can also be customized to coated SPCC. The standard filters are aluminum ones, but they can also be changed to baffle filters or other types according to customer's requirement. For aluminum filter, we also have 3-layer and 5-layer for customers to choose.
- Ultra-Silence:
The model operates at a remarkably low noise level of just 53dB, allowing you to fully enjoy your private kitchen time while cooking.

- Anti-oil Finished Fan Blade:
Teflon finished fan blade is anti-oil by the motor turning speed of 600-1500r/min, therefore there is no need to wash the fan blade very often.
- Full-Sealed Motor System:
According to our nationally approved lab, DE&E's high-quality full-sealed motors last 30% longer than standard motors. The use of macromolecule insulating material for sealing enhances the motor's sustainability and efficiency.

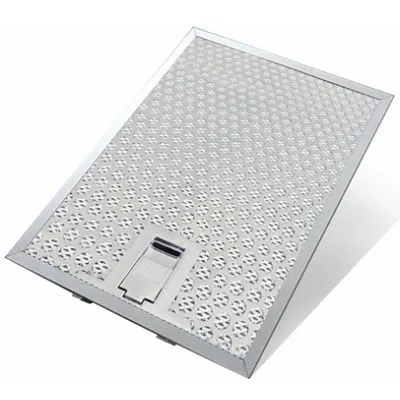

- Filter Options:
There are different types of filters for you to choose the suitable one for your market.



Specifications
|
Product Name |
kitchen range hood non vented |
Model No. |
H308T7 |
|
Body Material |
Stainless Steel + Tempered Glass |
Levels of Speed |
4 Speeds |
|
Maximum Airflow |
1000m³/h |
Motor Power |
180W |
|
Noise Level |
53dB |
Motor Type |
Full-Sealed Metal AC Motor |
|
Fan Type |
Metal Fan with Teflon Finish |
Control Type |
Sensor Touch Control |
|
Filter |
2Pcs 5 Layers Aluminum Filters |
Light Type |
≤2*2W LED |
|
Venting Size |
150mm |
Air Pressure |
220Pa |
|
Rated Voltage/Frequency |
220-240V~,50/60Hz |
Rated Input Power |
184W |
|
Product Size |
695*480*800(W*D*H)(mm) |
Packing Size |
750*465*520(W*D*H)(mm) |
|
Loading Qty |
(20GP/40GP/40HQ)=150/320/396 |
G.W/N.W |
23kg/18kg |
Product Dimension Drawing

Installation View

FAQ
