Self Cleaning Range Hood
Details
Self cleaning range hood HT9019
90cm T-shape European Style Kitchen self cleaning range hood
Auto-heated Self-Clean Function
Optional Filter Types
Decorative Aluminum Strip on Front Panel
Category
Under Cabinet Range Hood
Share to
Description

Product Description



This self cleaning range hood features a European design with a width of 90cm. The hood body and chimneys are made of stainless steel. The standard filters are aluminum, but they can be upgraded to baffle filters or other types based on customer preferences. It also features auto-heated self-clean function.



  • Ultra-Silence:

This model operates at an impressively low noise level of just 53dB, allowing you to enjoy a peaceful cooking experience in your private kitchen.



Ultra-Silent Kitchen Exhaust Hood



  • Anti-oil Finished Fan Blade:

The fan blade features a Teflon finish that is resistant to oil, and with a motor speed of 600-1500r/min, it minimizes the need for frequent cleaning of the fan blade.



  • Full-Sealed Motor System:

According to our national approved lab, DE&E high quality full-sealed motors serve 30% longer compared with normal motors. The macromolecule insulating material for sealing also keeps the motor more sustainable and efficient.

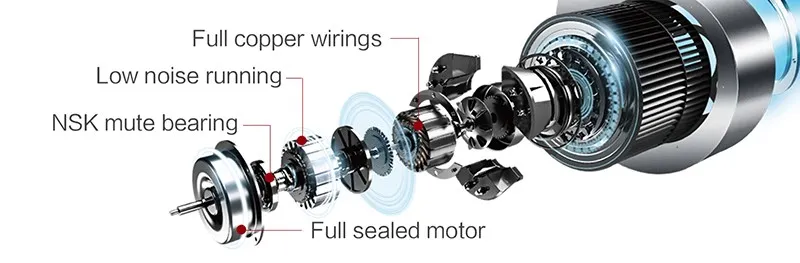

Kitchen Exhaust Hood Full-Sealed Motor System



  • Filter Options:

You can choose different types of filters according to your market's needs.

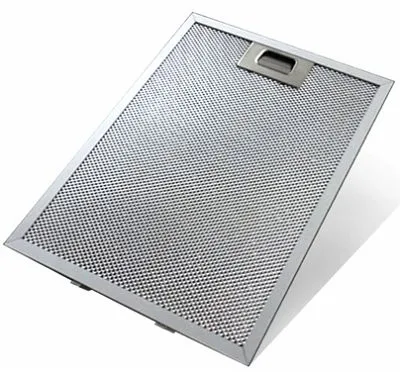

5-Layer Aluminum Filter for Kitchen Exhaust Hood001

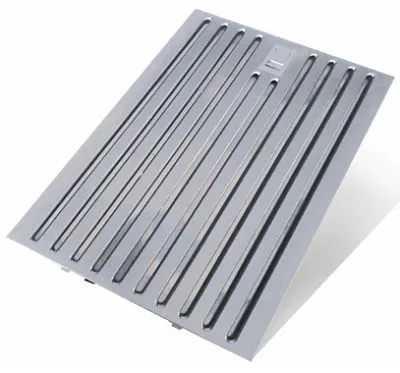

Baffle Filter for Kitchen Exhaust Hood001

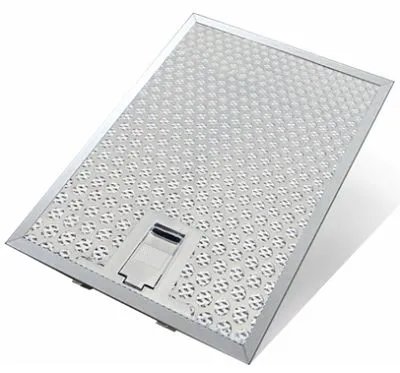

AluminumStainless Steel Filter for Kitchen Exhaust Hood001
Stainless Steel Filter For Kitchen Exhaust Hood001
  • Auto-heated Self-Clean Function:

The kitchen exhaust hood will automatically activate the self-cleaning program after a cumulative usage of 60 hours and a 30-minute shutdown. At 75°C, the electric heating will melt the internal grease while simultaneously maintaining the cleanliness of the duct system to ensure long-lasting and powerful suction.

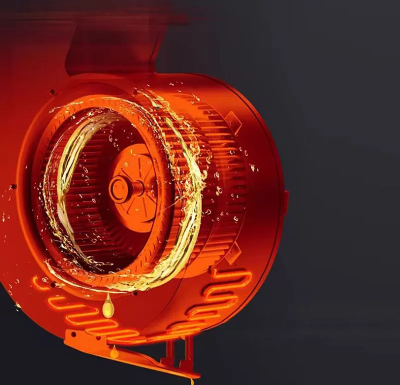

Auto-heated Self-clean Kitchen Exhaust Hood



Specifications



Product Name

self cleaning range hood

Model No.

HT9019

Body Material

Stainless Steel + Tempered Glass

Levels of Speed

3 Speeds

Maximum Airflow

1000m³/h

Motor Power

180W

Noise Level

53dB

Motor Type

Full-Sealed Metal AC Motor

Fan Type

Metal Fan with Teflon Finish

Control Type

Sensor Touch Control

Filter

3Pcs 5 Layers Aluminum Filters

Light Type

≤2*2W LED

Venting Size

150mm

Air Pressure

220Pa

Rated Voltage/Frequency

220-240V~,50/60Hz

Rated Input Power

184W

Product Size

895*455*450(W*D*H)(mm)

Packing Size

955*440*530(W*D*H)(mm)

Loading Qty

(20GP/40GP/40HQ)=124/248/320

G.W/N.W

21.5kg/16.5kg



Product Dimension Drawing

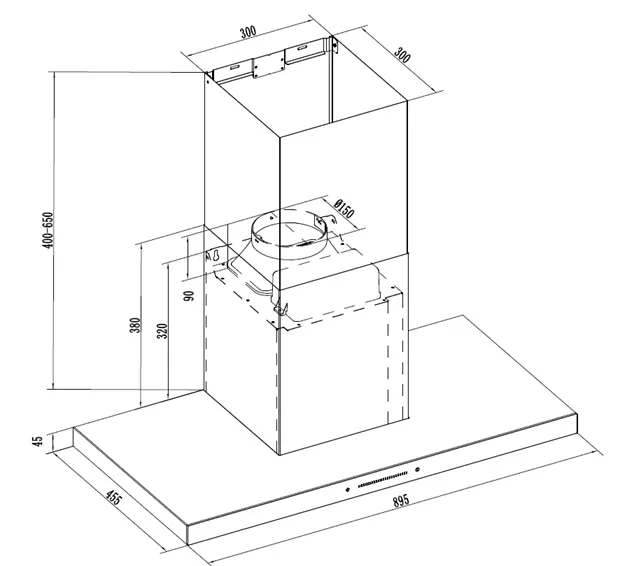

Kitchen Exhaust Hood Line Drawing



Installation View

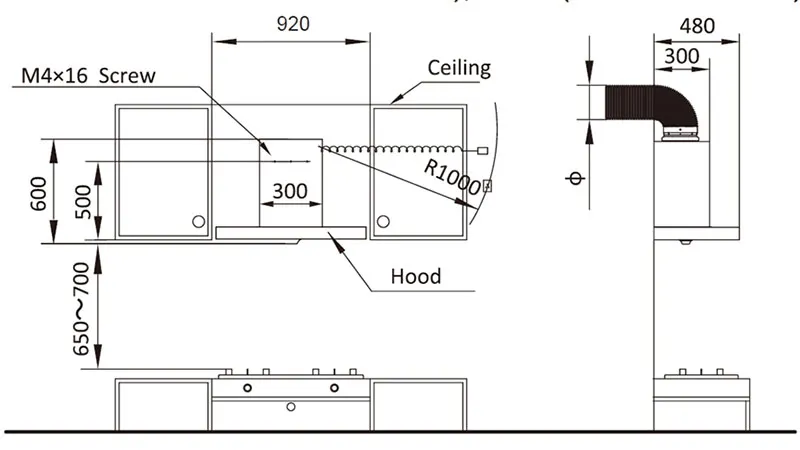

Kitchen Exhaust Hood Installation View



FAQ

Q: What is the best material for a kitchen exhaust hood?

A: Stainless steel is the most popular choice of material for an exhaust hood. It is the most common material for good reason. Copper is the elegant and timeless choice of material for exhaust hood. Tempered glass as material for exhaust hood is modern and sleek. Wood features a warm and rustic touch as the material for exhaust hood. To select which one is best, other factors need to be taken into consideration, such as cost, endurance, cleaning and maintenance, etc.

Q: What are common problems with range hoods?

A: Common problems with a range hood include:
Poor Suction Power: Insufficient airflow can result from a clogged filter, obstructions of ductwork, or your range hood has an improper size which doesn't match your stove's size.
Unpleasant Odors: If odors linger after cooking, there is a sign that your hood's filter is dirty enough or the venting system of your hood has problems.
Noise Issues: Excessive noise may stem from a worn-out motor, loose components, or an unbalanced fan.
Lights Not Working: Burnt-out light bulbs or faulty wiring can cause the lights in the range hood not working.
Grease Buildup: Accumulation of grease on filters and the hood itself can hinder performance and pose a fire hazard.
Addressing these issues promptly can help maintain the efficiency and performance of your range hood.
