900mm Undermount Rangehood

Send Inquiry
900mm Undermount Rangehood
Details
900mm undermount rangehood HT9018
Slide Sensor Touch Control
Optional Filter Types
Stainless Steel Hood Body and Chimneys
Category
Under Cabinet Range Hood
Share to
Description

Product Description



900mm undermount rangehood feature a European design with a width of 90cm. The hood body is made of stainless steel material, so do the inner and outer chimneys. The standard filters are made of aluminum, with the option to upgrade to baffle filters or other types based on customer preferences. It is controlled by slide sensor touch. You may slide your finger to different speed.



  • Ultra-Silence:

The model operates at a remarkably low noise level of just 53dB, allowing you to fully enjoy your private kitchen time while cooking.



Ultra-Silent Stove Hoods



  • Anti-oil Finished Fan Blade:

The fan blade features a Teflon finish that is resistant to oil, and with a motor speed of 600-1500r/min, it minimizes the need for frequent cleaning of the fan blade.



  • Slide Sensor Touch Control:

This model features a slide sensor touch control, allowing you to easily adjust the speed by simply touching and sliding from left to right.



Slide Sensor Touch Control Stove Hoods

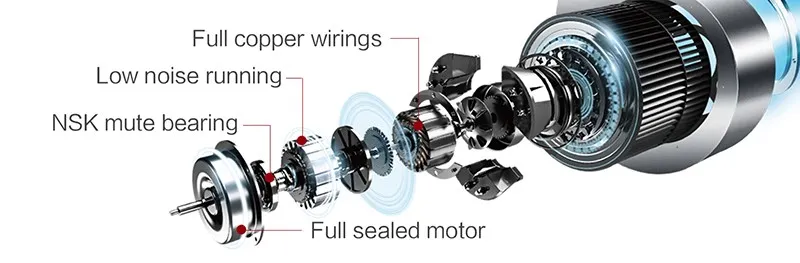

  • Full-Sealed Motor System:

According to our nationally approved lab, DE&E's high-quality full-sealed motors last 30% longer than standard motors. The use of macromolecule insulating material for sealing enhances the motor's sustainability and efficiency.



Stove Hoods Full-Sealed Motor System



  • Filter Options:

You can choose different types of filters according to your market's needs.

5-Layer Aluminum Filter for Stove Hoods
Baffle Filter for Stove Hoods
Aluminum+Stainless Steel Filter for Stove Hoods



Specifications



Product Name

900mm undermount rangehood

Model No.

HT9018

Body Material

Stainless Steel + Tempered Glass

Levels of Speed

4 Speeds

Maximum Airflow

1000m³/h

Motor Power

180W

Noise Level

53dB

Motor Type

Full-Sealed Metal AC Motor

Fan Type

Metal Fan with Teflon Finish

Control Type

Slide Sensor Touch Control

Filter

3Pcs 5 Layers Aluminum Filters

Light Type

≤2*2W LED

Venting Size

150mm

Air Pressure

220Pa

Rated Voltage/Frequency

220-240V~,50/60Hz

Rated Input Power

184W

Product Size

895*455*450(W*D*H)(mm)

Packing Size

955*440*530(W*D*H)(mm)

Loading Qty

(20GP/40GP/40HQ)=124/248/320

G.W/N.W

21.5kg/16.5kg

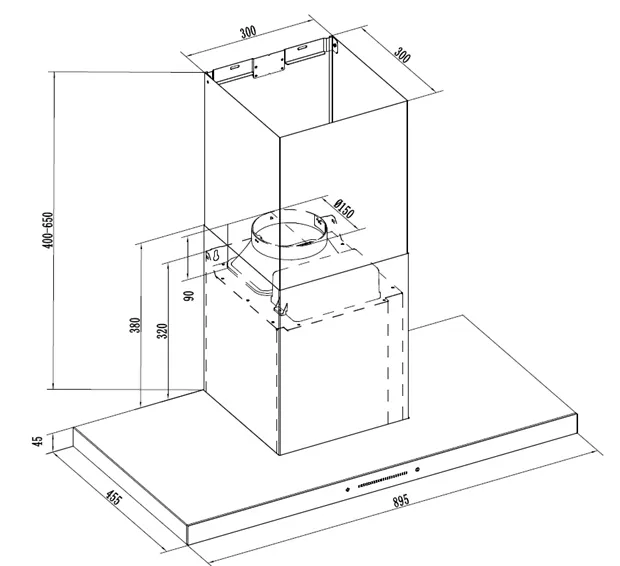

Product Dimension Drawing



Stove Hoods Line Drawing

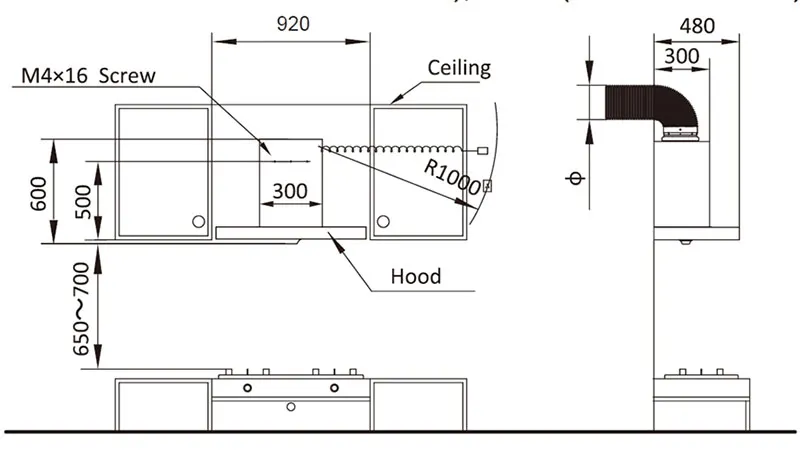

Installation View



Stove Hoods Installation View



Certifications



product-29-34 DSS_BE-40179_M1
product-29-34 DSS_SHES210701485002-M1



FAQ

Q: What are stove hoods?

A: A stove hood, also known as a range hood or cooker hood, is an appliance installed above a cooking surface that eliminates smoke, grease, steam, and odors through a fan. It may include lights and can either vent air outdoors (ducted) or filter and recirculate it within the kitchen (ductless). This helps improve air quality, hygiene, and minimizes heat and moisture during cooking. Contemporary models often feature smart capabilities such as automatic adjustments, easy-to-clean surfaces, and a variety of designs (like chimney, telescopic, and built-in) to match different kitchen aesthetics and requirements.

Q: What are common styles of stove hoods?

A: The first one is chimney, it features tall, wall-mounted, and often a design statement. The second one is telescopic/under-cabinet. It slides out when used, tucks away for a clean look. The third one is built-in/Integrated. It is concealed within cabinetry for seamless integration. The fourth one is island hoods. It is suspended over cooktops on kitchen islands.

Q: What is the difference between a chimney hood and a range hood?

A: These two terms are often used interchangeably, but they can refer to different features and styles.
Chimney Hood: A chimney hood is a specific style of range hood that includes an exposed chimney-like structure, typically extending upward from the hood itself. It is designed to create a visual focal point in the kitchen and often features a more decorative appearance, suitable for traditional or rustic kitchen designs. Chimney hoods are usually wall-mounted and can accommodate higher ceilings due to their extended height.
Range Hood: A range hood is a broader term that refers to any appliance installed above a cooktop or range cooker to ventilate cooking odors, smoke and grease. Range hoods have various styles, including under-cabinet hoods, island hoods, downdraft hoods, and chimney hoods. They may be ducted or ductless.
In summary, while all chimney hoods are range hoods, not all range hoods are chimney hoods. The difference mainly lies in the design and appearance, with chimney hoods featuring a prominent chimney structure for aesthetic appeal.
