Product Description

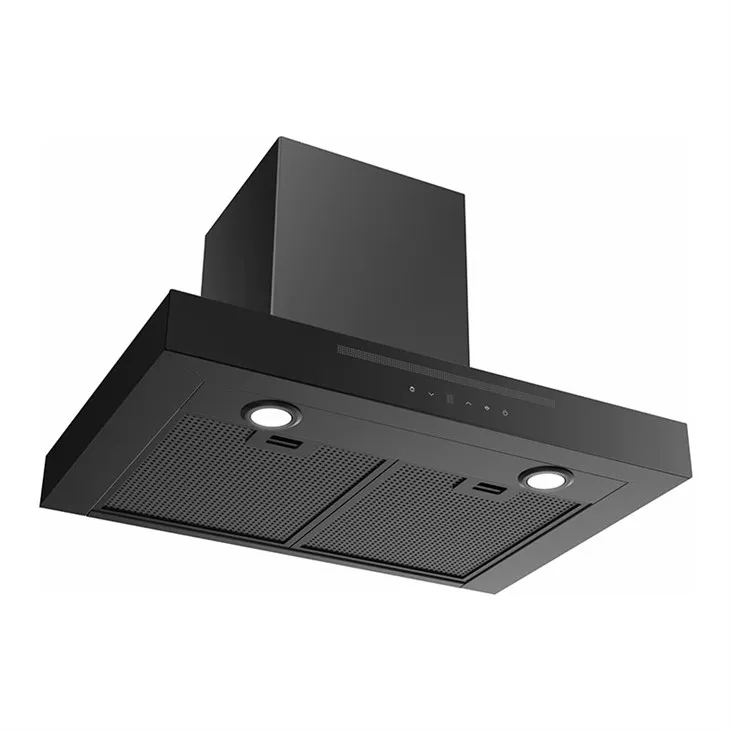

This 70cm range hood showcases a sleek European design and has a width of 70cm. Crafted from durable SPCC material, the body is elegantly finished in black. Both the inner and outer chimneys are also SPCC-coated, with the option to customize them in stylish black stainless steel. The standard filters are made of aluminum, with the option to upgrade to baffle filters or other types based on customer preferences. As to aluminum filters, we also have 3-layer and 5 layer for choosing.
- Ultra-Silence:
This model operates at an impressively low noise level of just 53dB, allowing you to enjoy a peaceful cooking experience in your private kitchen.

- Anti-oil Finished Fan Blade:
The fan blade features a Teflon finish that is resistant to oil, and with a motor speed of 600-1500r/min, it minimizes the need for frequent cleaning of the fan blade.

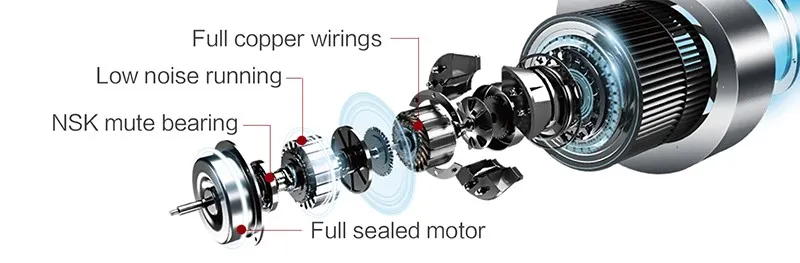

- Full-Sealed Motor System:
According to our national approved lab, DE&E high quality full-sealed motors serve 30% longer compared with normal motors. The macromolecule insulating material for sealing also keeps the motor more sustainable and efficient.

- Filter Options:
You can choose different types of filters according to your market's needs.



Specifications
|
Product Name |
70cm range hood |
Model No. |
H309T7 |
|
Body Material |
Coated SPCC + Tempered Glass |
Levels of Speed |
4 Speeds |
|
Maximum Airflow |
1000m³/h |
Motor Power |
180W |
|
Noise Level |
53dB |
Motor Type |
Full-Sealed Metal AC Motor |
|
Fan Type |
Metal Fan with Teflon Finish |
Control Type |
Sensor Touch Control |
|
Filter |
2Pcs 5 Layers Aluminum Filters |
Light Type |
≤2*2W LED |
|
Venting Size |
150mm |
Air Pressure |
220Pa |
|
Rated Voltage/Frequency |
220-240V~,50/60Hz |
Rated Input Power |
184W |
|
Product Size |
695*480*800(W*D*H)(mm) |
Packing Size |
750*465*520(W*D*H)(mm) |
|
Loading Qty |
(20GP/40GP/40HQ)=150/320/396 |
G.W/N.W |
22kg/18kg |

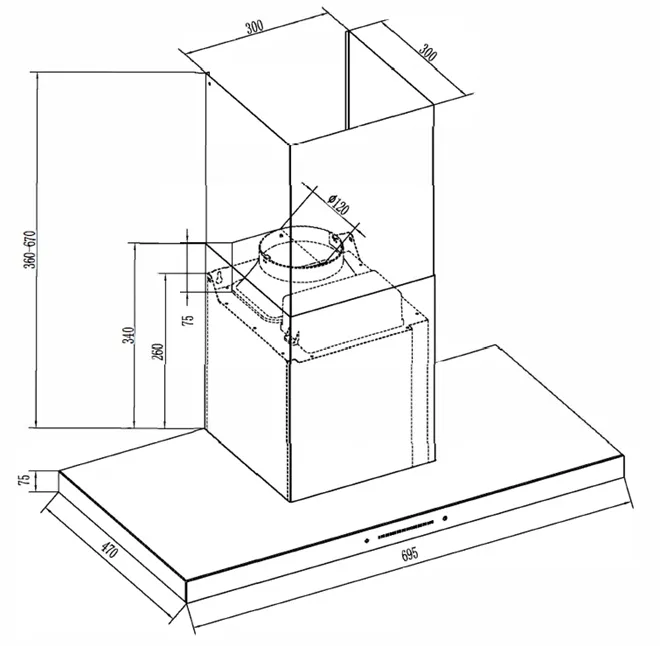

Product Dimension Drawing

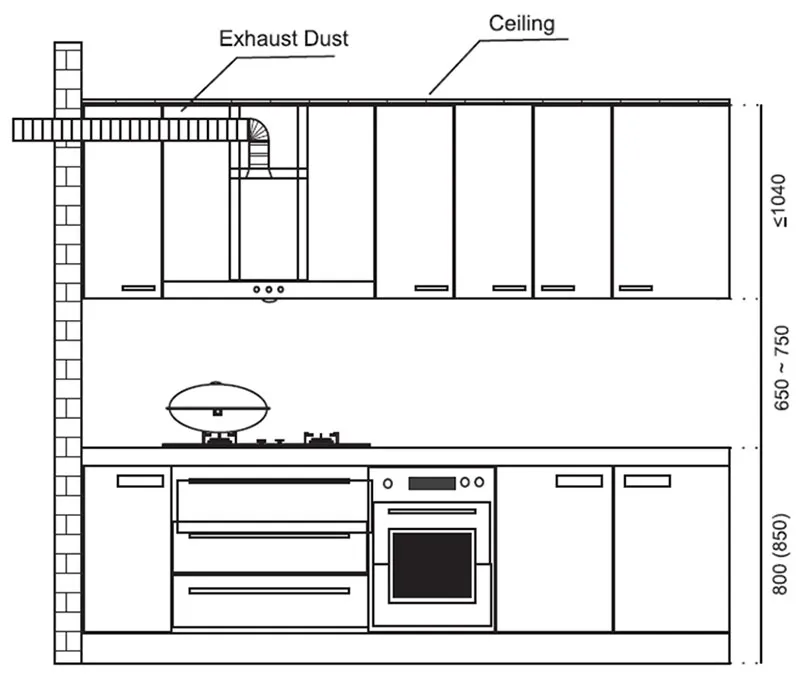

Installation View
