Recirculating Hood
Details
Recirculating hood HT9025
90cm T-shape European Style recirculating hood
Decorative Aluminum Strip on Front Panel
Optional Filter Types
Stainless Steel Hood Body and Chimneys
Category
Stainless Steel Range Hood
Share to
Description

Product Description



The recirculating hood boasts a European design and has a width of 90cm. Both the hood body and chimneys are crafted from stainless steel. While the standard filters are made of aluminum, customers have the option to upgrade to baffle filters or other types according to their preferences.



  • Ultra-Silence:

The model has really low noise to only 53dB and you may enjoy your private kitchen time when cooking.



Ultra-Silent Recirculating Kitchen Hood



  • Anti-oil Finished Fan Blade:

The fan blade features a Teflon finish that is resistant to oil, and with a motor speed of 600-1500r/min, it minimizes the need for frequent cleaning of the fan blade.

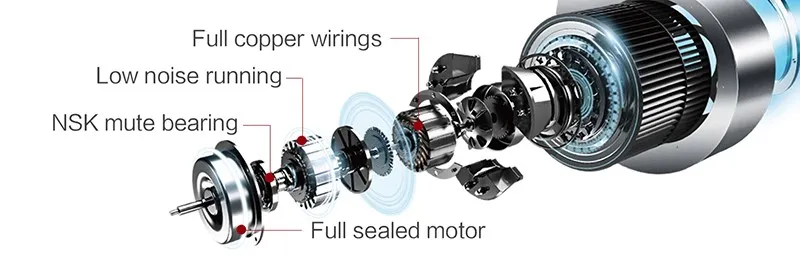

  • Full-Sealed Motor System:

According to our national approved lab, DE&E high quality full-sealed motors serve 30% longer compared with normal motors. The macromolecule insulating material for sealing also keeps the motor more sustainable and efficient.



Recirculating Kitchen Hood Full-Sealed Motor System



  • Filter Options:

You can choose different types of filters according to your market's needs.

5-Layer Aluminum Filter for Recirculating Kitchen Hood
Baffle Filter for Recirculating Kitchen Hood
Aluminum+Stainless Steel Filter for Recirculating Kitchen Hood



Specifications



Product Name

recirculating hood

Model No.

HT9025

Body Material

Stainless Steel + Tempered Glass

Levels of Speed

3 Speeds

Maximum Airflow

1000m³/h

Motor Power

180W

Noise Level

53dB

Motor Type

Full-Sealed Metal AC Motor

Fan Type

Metal Fan with Teflon Finish

Control Type

Sensor Touch Control

Filter

3Pcs 5 Layers Aluminum Filters

Light Type

≤2*2W LED

Venting Size

150mm

Air Pressure

220Pa

Rated Voltage/Frequency

220-240V~,50/60Hz

Rated Input Power

184W

Product Size

895*455*450(W*D*H)(mm)

Packing Size

955*440*530(W*D*H)(mm)

Loading Qty

(20GP/40GP/40HQ)=124/248/320

G.W/N.W

24kg/19kg

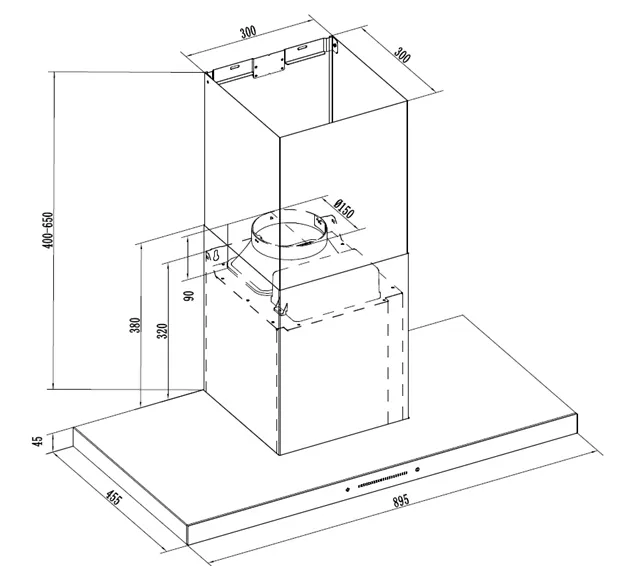

Product Dimension Drawing



Recirculating Kitchen Hood Line Drawing

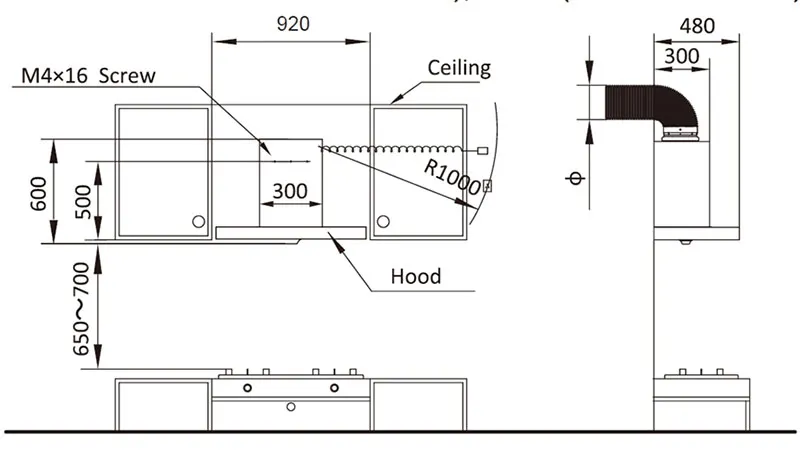

Installation View



Recirculating Kitchen Hood Installation View



Certifications



product-29-34 DSS_BE-40179_M1
product-29-34 DSS_SHES210701485002-M1



FAQ

Q: What maintenance does a range hood require?

A: The most conventional maintenance for a range hood is cleaning the filters. A clogged filter will significantly reduce the hood's efficiency and can even pose a fire risk if too much grease builds up. Therefore, you need to clean the filters every 1-2 weeks to guarantee smooth operation of your hood. Besides, wiping the external surfaces of the hood each time after cooking will also be a routine maintenance which can extend your hood's life expectancy.

Q: What should I look for when buying a rangehood?

A: There are several important features that you need to concern when choosing a rangehood. The first one is suction power; this feature indicates the strength of the rangehood and it is always measured in cube meters per hour. You should choose a rangehood with big suction power if you prefer heavy cooking. But if you only steam, simmer or boil you may choose a rangehood with moderate suction power. This will help save money. The second one is noise level. If a rangehood is with low noise, you can enjoy the family time while cooking in the kitchen. Usually, big suction power comes with high noise level. But there are also technologies which can balance the suction power and noise level.

Q: Does a range hood duct need to be cleaned?

A: As time goes by, grease and residue can build up inside the duct. This potentially causes blockages or reducing airflow. To maintain proper ventilation, the duct should be inspected annually. Have a professional inspect and clean the ductwork at least once a year. This helps prevent buildup that can affect the performance of your range hood.
