Products Description

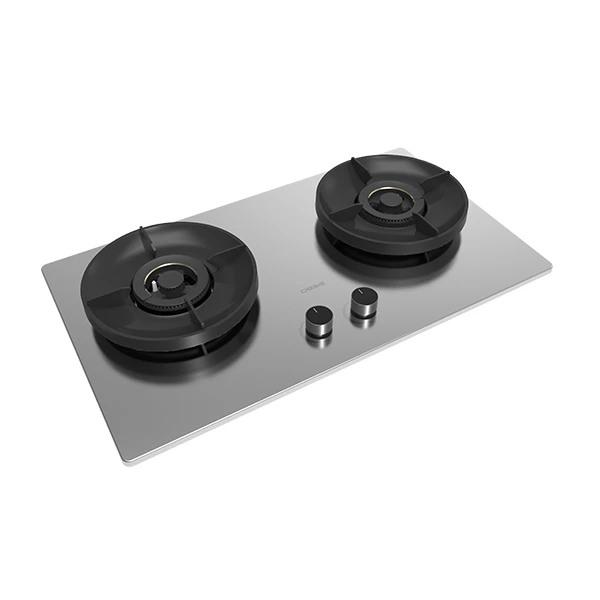

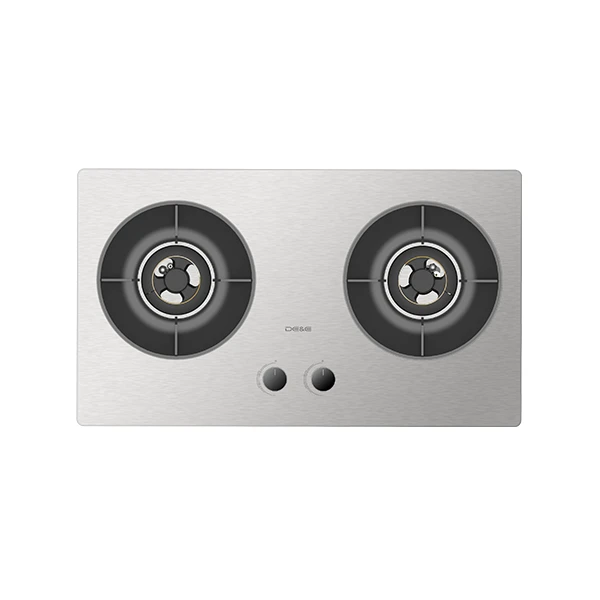

Boasting DE&E split propeller combustion technology, this Hob Cooktop provides max 5.8kW high fire power and up to 72% thermal efficiency. It supports easy cleaning with detachable burners and crystal enamel parts, and fits cutout sizes 630~700mm × 330~400mm for simple replacement. Zero-second instant ignition and eight-fold safety protection bring reliable and secure cooking experience.
5.8kW High Fire Power for Authentic Stir-Frying
Adopting DE&E POWER High-Fire Combustion Technology, we developed an innovative split propeller-driven combustion system. The three-blade wide fan-shaped channel delivers ample gas supply, and the 120mm large-diameter burner provides sufficient oxygen to achieve optimal air-gas mixing ratio. The bottom air replenishment chamber continuously enriches oxygen to sustain stable combustion. As mixed air and gas flow pass through the propeller blade structure, ideal aerodynamic conditions are formed, generating steady and powerful 5.8kW fire power. Perfect for traditional Chinese stir-frying to lock in nutrients and flavor.
72% High Thermal Efficiency, Energy Saving
The newly designed double-layer energy-gathering ring matches the integrated pan support, allowing the hottest outer flame to fully contact the pan bottom for improved heat absorption. The deep-dish enamel energy-gathering ring effectively traps heat and reduces heat loss, delivering an ultra-high thermal efficiency of 72%, exceeding China National Level 1 Energy Efficiency Standard. It enables efficient cooking with lower gas consumption.
Easy-to-Clean Assembly for Convenient Maintenance
a. Fully detachable burner: Combustion chamber, large burner cap and small burner cap can be disassembled separately. Simple assembly and disassembly enable thorough cleaning without dead corners.
b. Stain-resistant crystal enamel pan supports and drip tray: Made of 430 stainless steel substrate with crystal enamel coating, wear-resistant, scratch-resistant and oil-repellent for effortless cleaning.
Universal Size Design for Hassle-Free Replacement
Equipped with an adaptive base with wide flange adjustable structure, it flexibly fits cutout dimensions ranging from (630~700)mm × (330~400)mm. It accommodates various cutout sizes and makes stove replacement easy and labor-saving.
8-Fold Safety Protection for Reliable Safeguards
a. Stainless steel panel with excellent heat dissipation and flame retardancy, resistant to high temperatures.
b. Multi-layer heat insulation system: comprehensive anti-scald protection for knobs, panel and energy-gathering ring.
c. Four-point anti-slip positioning: fixed structure for large burner cap, small burner cap, drip tray and pan support, stabilizing flames and preventing cookware sliding.
d. Intelligent flameout protection: automatically cuts off gas supply to avoid gas leakage when flame extinguishes accidentally.
e. Child lock protection: push-and-turn knob design prevents unintended ignition by children.
f. High-stability pulse ignition: instant ignition without waiting.
g. Full inspection of valve body, air tightness and blue flame performance for every unit.
h. Gas-electric separation design to further upgrade safety performance.
Specifications
| Product Name | Hob Cooktop | Model No. | SZ536 |
| Panel | Stainless Steel | Pan Support | 430 Stainless Steel with Crystal Enamel Coating |
| Ignition | Battery | Protection | Flame Failure Devices |
| Efficiency | 72% | Burner Type | Aluminum Alloy Burners |
| Power | 2*5.8kW Wok Burner | Cutout Sizes | (630-700)×(330-400)(W×D)(mm) |
| Product Size | 780×460×130(W×D×H)(mm) | Packing Size | 835×515×203(W×D×H)(mm) |
| Loading Qty | (20GP/40GP/40HQ)=320/660/780 | G.W/N.W | 13.5kg/11.5kg |
Product Dimension Drawing
FAQ
Q1: Do gas stoves need ventilation?
Gas stoves need higher airflow to remove pollutants from gas and cooking than electric stoves. Tips to reduce indoor air pollution from cooking: Use a range hood (kitchen exhaust) every time you cook. If you do not have an exhaust fan, open nearby windows or doors to create a breeze that moves air across the room.
Q2:What is the difference between a gas range and a gas cooktop?
The main difference between a gas range and a gas cooktop lies in their overall design and functionality:
Gas Range: A gas range is an all-in-one kitchen appliance that includes both a gas cooktop and an oven. It is typically freestanding and offers a combination of cooking methods, allowing you to cook on the stovetop and bake or roast in the oven simultaneously. Gas ranges often come with various features, such as multiple burners with different sizes and heat outputs, a built-in timer, and sometimes convection oven capabilities.
Gas Cooktop: A gas cooktop refers specifically to the stovetop component that features gas burners for cooking. It is usually built into the countertop and does not include an oven. Gas cooktops can be installed as part of a kitchen design alongside a separate wall oven. They are available in various configurations, sizes, and burner setups.
In summary, a gas range combines both cooking and baking functionalities in one unit, while a gas cooktop is solely focused on stovetop cooking.
